Omega Moon Swatch Mod

Just two years ago, Swatch brought to market a whole series of Omega branded Speedmaster Moonwatch chronometers and sold them at a premium price for what were essentially plastic, quartz movement watches.   But that in no way dissuaded the buying public, the watches sold out quickly and reappeared on the used market at elevated prices.

To really do justice to this official factory produced tribute watch is to discard the cheap plastic “bioceramic” case and place the movement into a metal Speedmaster case. And I intend to go one step further. 2025 marks 95 years since the introduction of Hergé’s Tintin comic book character and in North America this means Tintin and all his friends have become public domain figures. In 2013, Omega introduced a Tintin Speedmaster with an outer track consisting of alternating red and white sectors reproducing the color scheme of the Professor Calculus’ moon rocket in Destination Moon. It was to appear with the actual rocket on the dial face, but the Hergé family did not grant licensing rights and the resulting compromised design was the result. The watch production only lasted two years and is rare and expensive to purchase. We’re going to add the Tintin mod to the project.

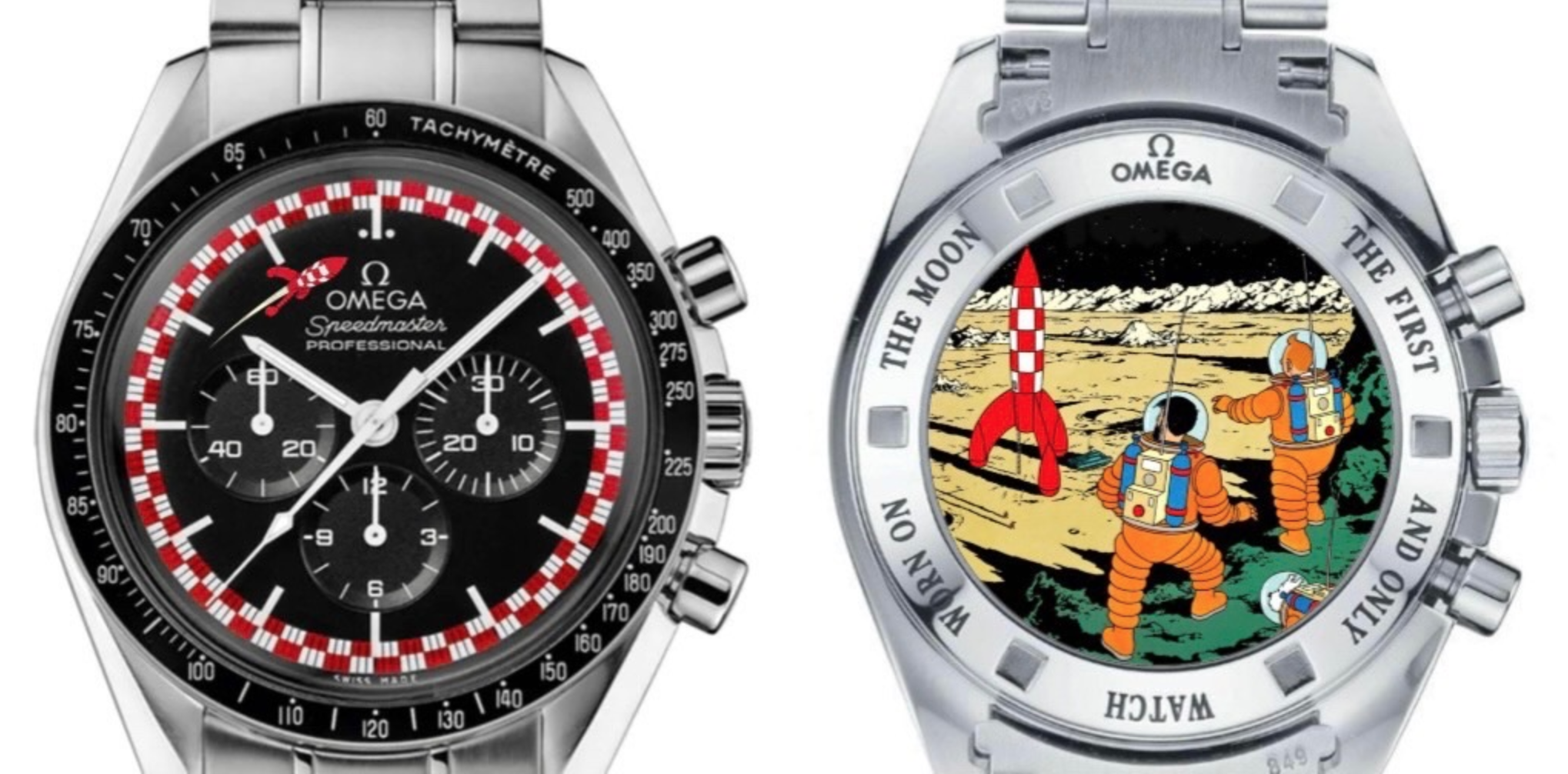

Screen Shot 2025-01-28 at 11.00.07 PM
This is the one and only Tintin prototype watch which never made it to production.   Omega had already begun dial manufacturing when the licensing deal fell through so they marketed the watch as a Speedmaster Racing model with which it bore a close resemblance to past similarly named models. Even though the Tintin connection was well known, the watch was not well received when new and carried no price surcharge. That is now no longer true in the collector world.



P1251993
The packaging of a real Moon Swatch involves a precision made origami style outer box that is never duplicated with the Chinese replicas being made today. Even though prices have stabilized to about $300 USD for this particular model, Chinese replicas cost only a third and are quite convincing. I have advocated in the past NOT to buy anything made in China … if possible. I found this slightly used watch for sale locally for $200 USD as a nearly unworn gift.



P1251996
My working gear involves a pair of illuminated 3x magnification surgical loupes, a Dremel equipped with dental diamond burs, and the Moon Swatch.  To make our Tintin tribute Speedmaster it is imperative we start with an authentic Moon Swatch, and not a Chinese fake.
P1251997
Cutting through the rear of the case around the crown reveals the tiny pinhole access to release the stem. A 27 gauge needle was just small enough to be inserted into the hole.
P1251998
Removing the tachymeter bezel is quite simple and is needed to expose where the base of the crystal is glued to the case.
P1251999
By cutting the case below the level of the crystal and undermining it, the crystal can be separated and then finally removed entirely.

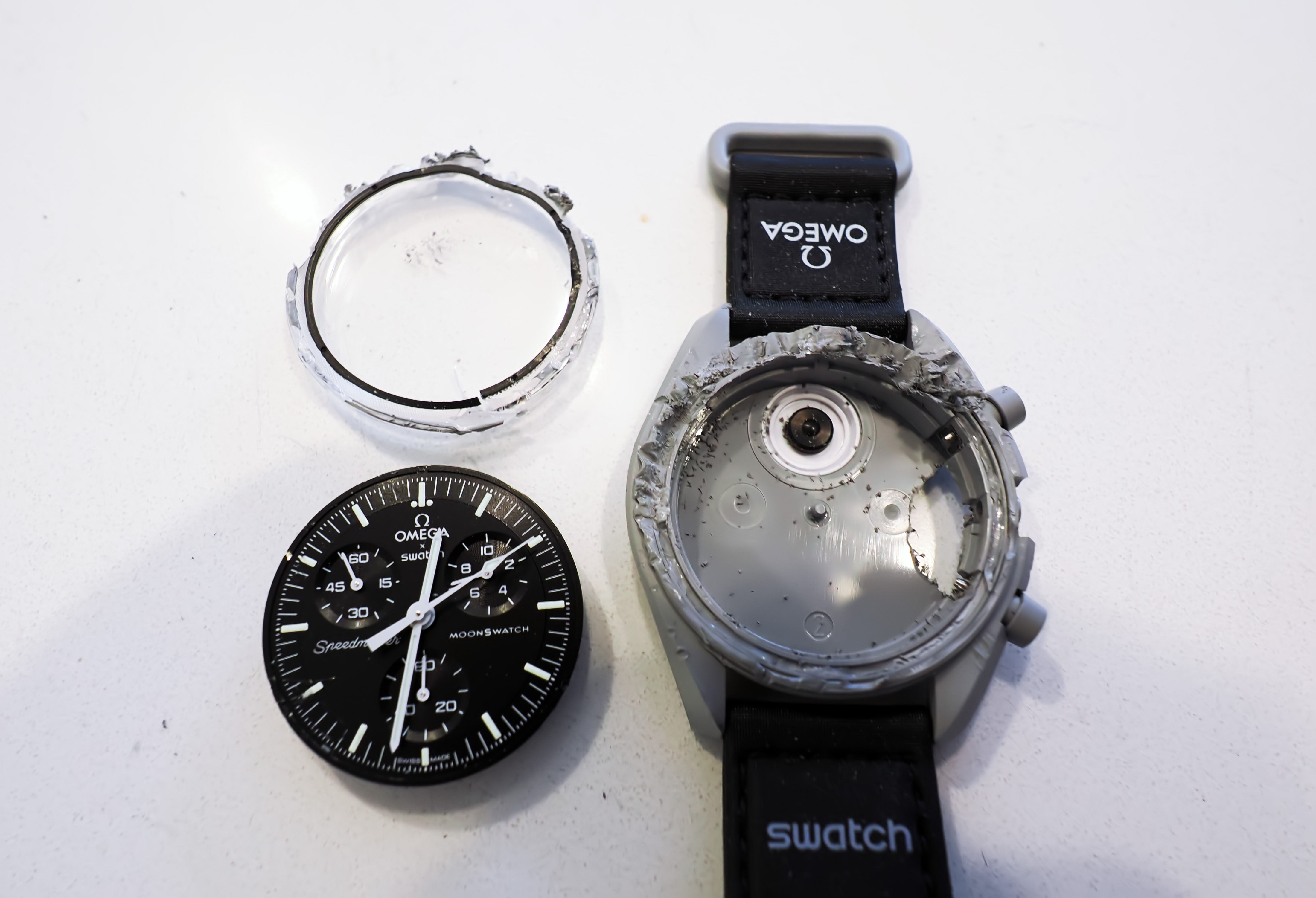

P1252000
Success!
tintinring
The Tintin outer ring can be easily drawn with Photoshop as shown in the first example with radii extending every 6 degrees. But to be more faithful to the rocket livery, the red and white checkboard pattern is not divided by black lines. I carefully drew a series of 6 adjacent sectors where the colors are not delineated by a black line and then duplicated this short arc through to the rest of the perimeter in the second example.



Fiskars
The design can be printed with an ink jet or laser printer onto water transfer decal paper. I used a Fiskars circle cutter to cut the inner circle since that must be done accurately and cleanly owing to the great visibility on the dial. The outer circle perimeter will be hidden by the lip of the dial face. I had to modify the circle cutter so that it would cut circles smaller than its original design limitations. I went through four circle cutters and this is the best one for this particular task bar none.



TintinDialFace2
Not dial paint quality BUT when viewed with the naked eye at normal magnification it is still convincing.

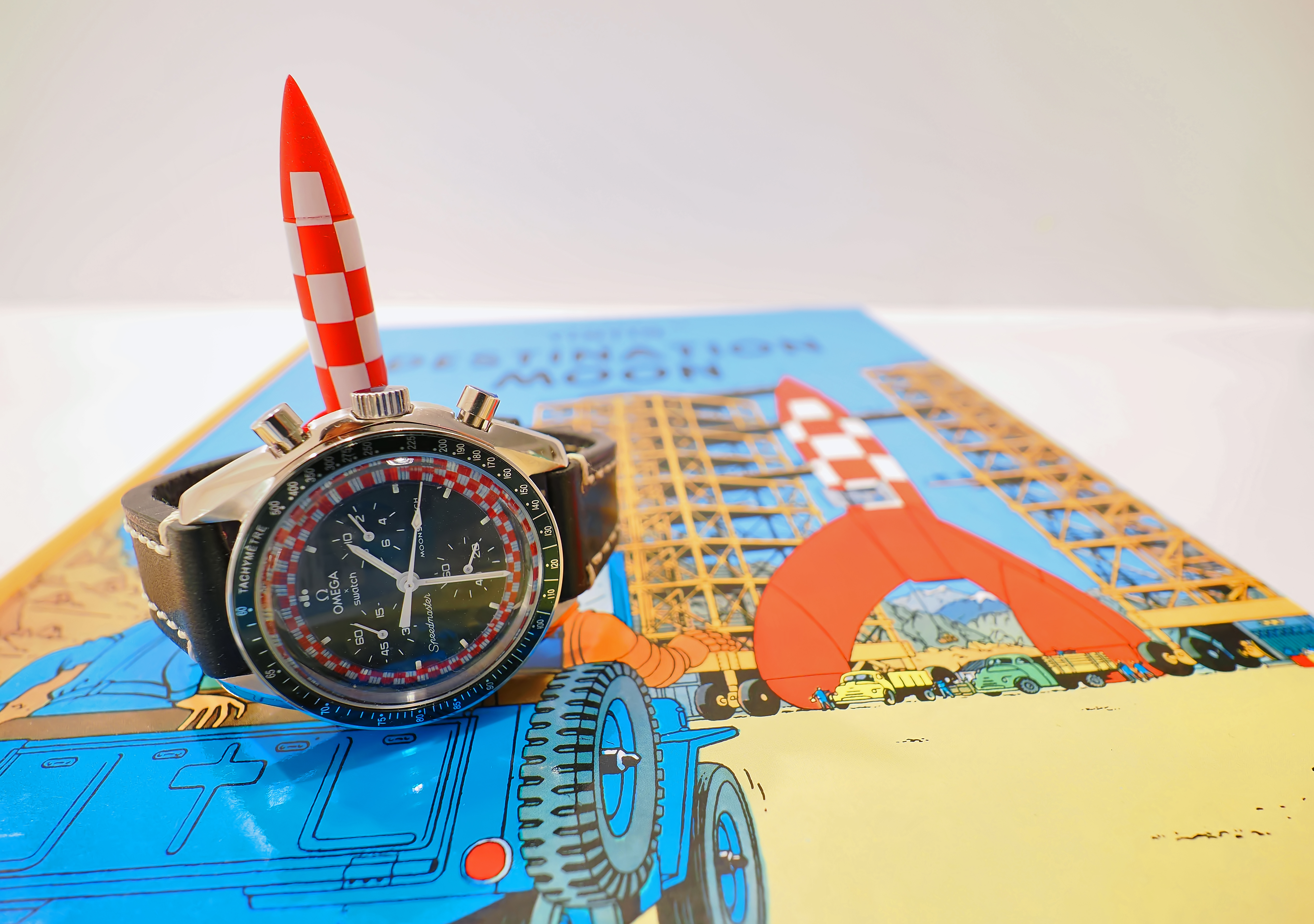

TintinSwatch
The completed mod. The case is not an authentic Speedmaster case, that would cost more than a thousand USD. It is a Chinese made stainless steel replica built to fit a VK63 movement with a 40mm case back diameter. The full sized stem for a swiss ETA G10.212 movement was shortened by about 4.5 mm to allow it to fit the screw down crown. The movement is held in place by wrapping about a 0.75 mm thickness of black tape around the periphery to keep the movement centered and not mobile.

I have advocated not buying anything made in China – if possible, since that government is increasingly hostile to the free democracies of the world.  And I never thought I would say this but that now also includes not buying anything made in the United States of America.  The newly sworn in 47th President recently threatened to use economic coercion to “persuade” Canada to become the 51st state by levying a 25% tariff on all Canadian goods imported into the US (it is literally coercion since the tariffs are illegal and violates the free trade deal that he himself renegotiated in his first term and then declared a spectacular success for America).  This would likely push the Canadian economy into a recession by reducing annual growth by 2% and send half a million Canadian workers into unemployment.  Presumably if we needed more convincing, he could keep raising the tariff level until we capitulated.  Canada of course would reply in kind and this type of trade war would also hurt the average American citizen too since many things would instantly become more expensive like gasoline since 70% of crude oil refined in America comes from Canada, as well as a great deal of hydro electricity used by the East coast.

Trump is serious.  He understands that the Arctic is the future and that Russia and China are also staking their claims to it so he wants to seize the Canadian lands in the Arctic.  That is also the motivation for his desire to buy Greenland from Denmark.  But Trump is renowned for not being well read or a good negotiator.  If he had kept his intentions secrets, he would have had a much greater chance of achieving his goals.  But by mocking Canada as a future state, he instantly stiffened the resolve of the entire nation.  Canadians define themselves as NOT being American.   Much of Canadian history is a reaction to perceived threats from America.  We thought this nonsense had all but vanished in the 20th century but then who would have ever thought a man like Trump could ascend to the presidency not once, but twice.

Trump prides himself as a master businessman but his record speaks otherwise.   He was a property developer in his hometown of New York City, yet he bought the Plaza Hotel there in the 1980s for $400 million and a decade later sold it for a $83 million loss.  He had three casinos in Atlantic City that went bankrupt.   How inept must one be to run a casino into bankruptcy?

Trump may very well force economic hardship onto Canada since the US economy is 10x larger, but the Canadian people are now unified more than they have been since the Second World War and are tough enough to take on far more pain than I suspect Trump is willing to bear from the cries of his own people.

And to my fellow Canadians, I’ve started to occasionally pay for the drive through order of the car behind me at Tim Horton’s.   This act of friendship towards a total stranger reminds Canadians that we are all in this together, and we will survive this together and be stronger and better for it in the end.   Canada can find markets for its exports elsewhere in the world, we have the respect of the entire planet.   The North West passage will soon supplant the Panama Canal as the conduit for European trade to Asia.  Trump says America doesn’t need Canada.   As usual he has got it ass backwards.

TintinSpeedmasterSwatch2
So, the real deal Swatch died suddenly. I guess it had been running in its box for nearly 3 years and that apparently is the lifespan of this thing. So I purchased a Chinese clone with the PE50 movement and redid the graphics to improve its visibility and appearance.   I enjoyed the watch immensely for about a month then it fell off my desk onto my hardwood floor … and stopped working.   C’est la vie.   (FALSE ALARM – battery just got jarred loose and all is well again!)
